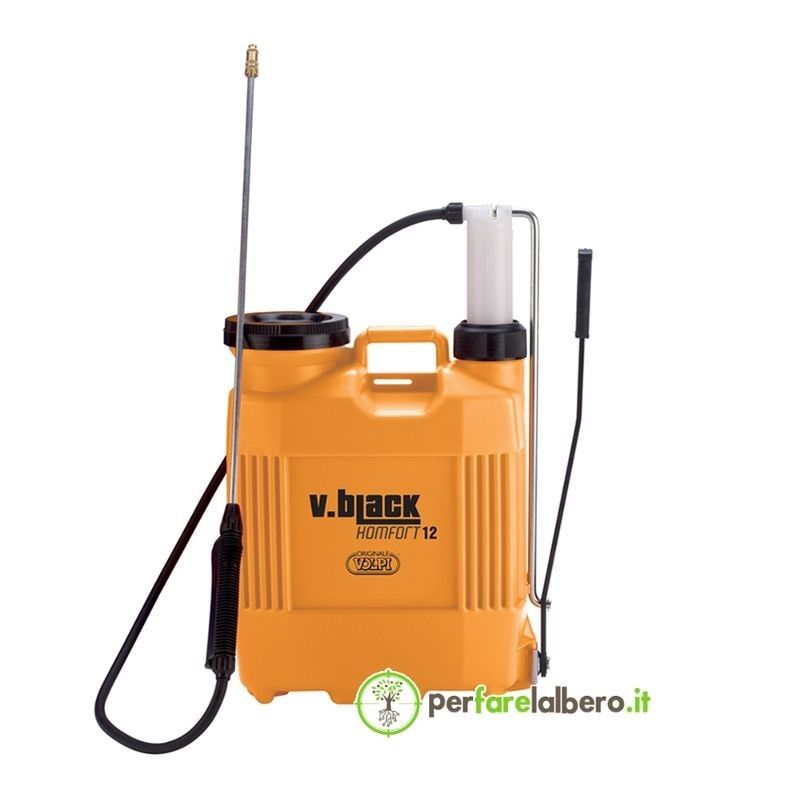

Backpack pump V.Black Komfort pump. Plastic Volpi Original

Volpi Komfort is a hand-held pressure pump, carried on the shoulder.

Lightweight, robust, reliable and easy to maintain. Suitable for use in agriculture and gardening (phytosanitary treatments on small and medium-sized areas).

The pumping system (Ø52 plastic pump) does not tire the operator. The tank (12/16 litres) offers the right ratio between autonomy and weight. The pump is equipped with adjustable straps and handle (for easy transport);  700mm aluminum extension and lever click handle.  Buy the practical trolley included with weeding bar, to carry out weeding or irrigation operations more easily

Other features:

• Tank material: HD polyethylene
• Operating pressure 6 bar
• Aluminum lance
• Click Get lever handle
• Adjustable spray nozzle•
• Adjustable shoulder straps
• NBR gaskets
• Filling mouth diameter 115mm
•

Details of the plastic pumping unit (12 litres - 16 litres) :

• Delivery hose length 1.2 m
• Filling mouth diameter 115 mm
• Min./max. temperature 5°C / 40°C
• Suitable for use with pesticides, according to ISO19932 regulation [using the 166RPK and 168RPK kit]

Details of the Model Komfort Backpack Pump Volpi Original:

A   700 mm aluminium lance with adjustable brass nozzle
B   HD polyethylene tank
C   Handle with ergonomic Click lever with immediate stop
D   Comfortable carrying handle
E   Plastic pumping unit with hydromechanical system for constant tank mixing
F   Robust metal control lever
G   Adjustable shoulder straps

Exploded view of spare parts for Komfort pump

Spare parts for Volpi Komfort pump (can be ordered) :

 1 920/31 Complete Plastic Pump Ø39/ Complete Plastic Pump Ø39
2 ZUBU29W8 Seeger Ø8/ Seeger Ø8
3 910/16 Galvanized Lever Ø10/ Zinc-Coated Lever Ø10
 4 920/3 piston o-ring holder ø39/ piston o-ring holder ø39
 5 920/81 stainless steel sphere valve 1/2"
6 ZZOR139 Piston O-Ring
 8 CP0011R PORTABARTO CON O-RING PER l'PRESA / Hose adaptor with O-ring for handle
9 PL01C06 Swivel 3/8" / Plastic Locking Nut 3/8"
10 PVC120 PVC Delivery Hose 8x13x1200/ PVC Delivery Hose 8x13x1200
11 92/2 screw cap+ valve+o-ring/ screw lid+ valve+ o-ring
12 78/3 Plastic sieve Ø100/ Plastic sieve Ø100
13 95/6P RING NUT PLASTIC PUMP GUIDE Ø52/ Ring nut for plastic pump Ø52
15 ZOR159 TANK O-RING
16 mm Handle on Lever
17 92/17c leva con supporto/ lever with support
18 82/22 Blocco per manetta/ Handle Blocking System
19 TTB Plastic Pump Guide Ø39/ Plastic Pump Guide Ø39
20 PL30Z01 LINGUETTA PLASTICA PER SPALLACCI/ PLASTIC TAB FOR SHOULDER STRAP
21 TES007 Bare Shoulder Strap
22 FE92/1 HOOK PER SPALLACCIO/ HOOK FOR SHOULDER STRAP
- 163K Ø10 Click Handle
- 192/1 aluminium lance ø10 cm 50 with fittings+o-ring/ aluminium lances ø10 cm.50 with connector+ o-ring  -
- 928 Ottello in ottone abile/ adjustable brass nozzle
