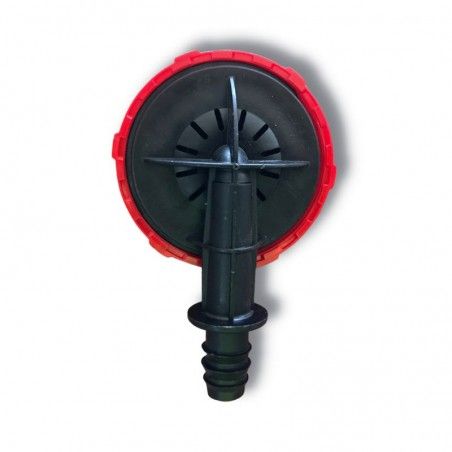

PTG end-of-line purge valve. D.16
End-of-line hose purge valve diameter 16mm
For plant protection products
For plant protection products:
--WARNING-- Before purchasing plant protection products, always consult the updated label on the website: http://www.fitosanitari.salute.gov.it/fitosanitariwsWeb_new/FitosanitariServlet as the registrations may change and be different from what is reported in the description on the product page.
End-of-line purge valve with 16 mm diameter hose connector outlet

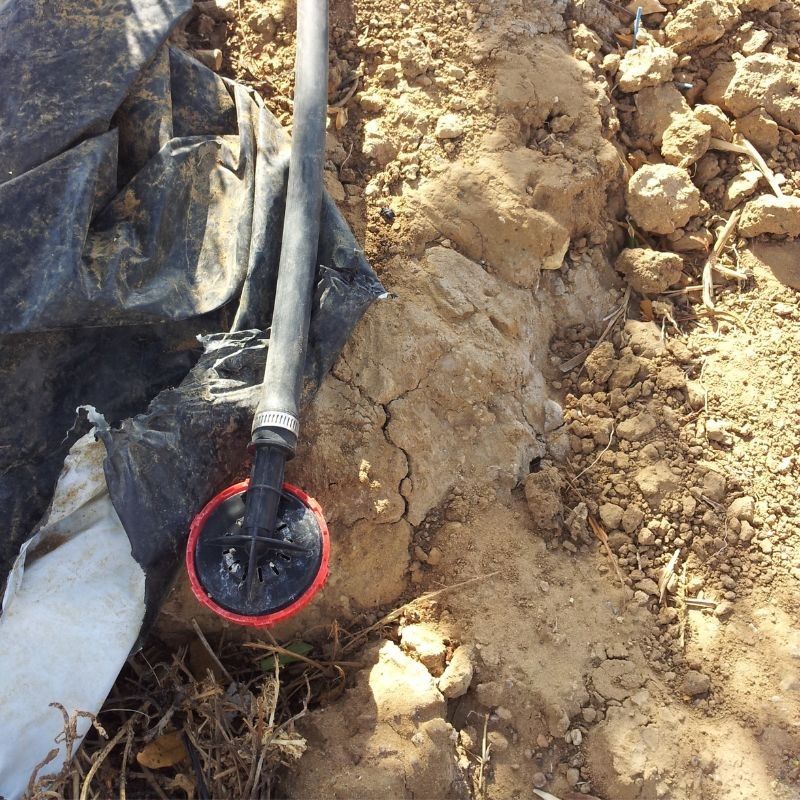

The naandajain fine purge valve can be installed both in drip irrigation systems but also in sub-irrigation. It allows you to automatically purify the final part of the dripline at the beginning of each irrigation shift. It is effective when frequent washing is required due to the poor quality of the water. Save labor time by automating purge and simplified opening operations.
TECHNICAL DATA
-
Operating pressure: 0.5-3.0 bar
-
Purge Time: 15-25 seconds
-
Purge volume: 2-3 liters per line
Hose connector outlet 16mm (for wall thickness: 0.9-1.2 mm, internal diameter: 13.9 mm). A cable tie will also be supplied, it is strongly recommended to install it to make the connection between the dripline and the valve firm.
| The farmer's experience: Mark: "The end-of-line purge valve is the elixir of life of a localized irrigation system" |
Be the first to ask a question about this product!
