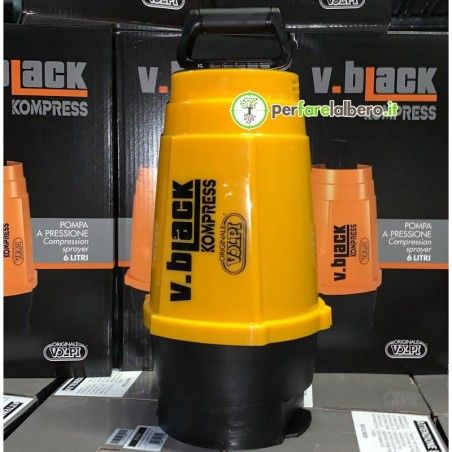

6L V.Black Kompress VolpiPre-Compression Manual Pump

Volpi Original Pump 6L V.Black Kompress working pressure 2.5 bar

Above the tank there is a vent valve that guarantees safety to the operator in case of excessive pressure.

For use in the garden and home.

Equipped with a curved 40 cm aluminum lance with ergonomic Click Get handle and brass nozzle. With practical handle and shoulder strap to carry the pump without fatigue.

Other features:

• Tank capacity: 6 Lt
• Tank material: Polypropylene
• Standard safety valve with 3 bar calibration
• Lever click handle
• Adjustable  nozzle
• Adjustable shoulder strap
• NBR gaskets
• Filling mouth diameter 60mm
• Empty weight of the pump 1.35Kg

Technical specifications of the 6L V.Black Kompress backpack pump

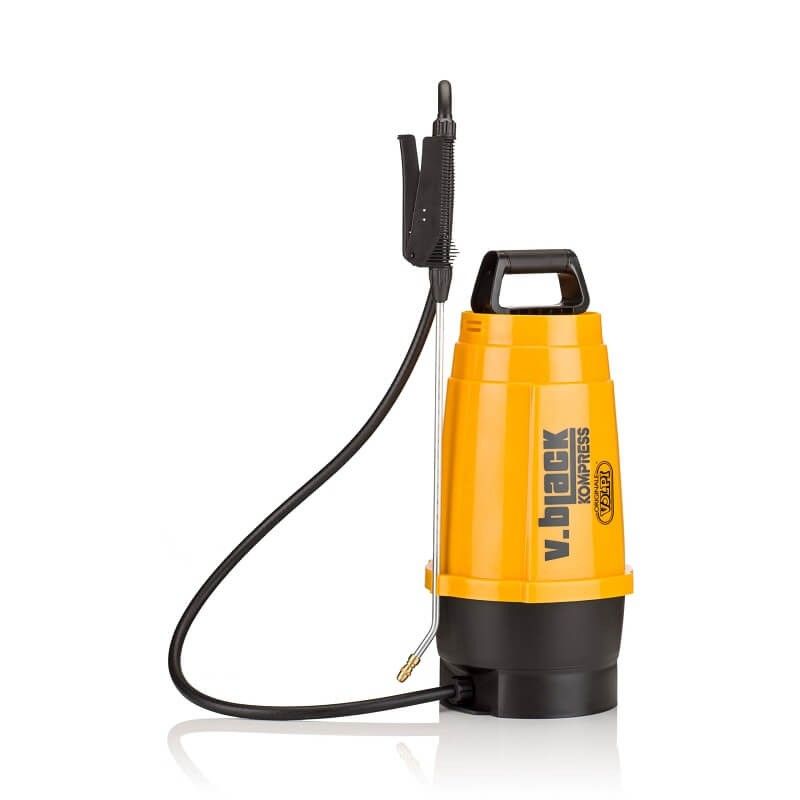

Details of the 6L V.Black Kompress Pump  Volpi Original

At  Manual pumping handle
B  Curved aluminium lance 400 mm
C  Adjustable spray nozzle
D  Handle with ergonomic Click lever with immediate stop
E  Pressure relief valve
F  Polypropylene tank
G  Adjustable shoulder strap with reinforcement and handle

Exploded view of Volpi original 6L V.Black Kompress pump spare parts

Spare parts  for the 6L V.Black Kompress pre-compression hand pump (can be ordered) :

1 19KPR010 Complete  Tank
2 19KPR020 Complete  Pumping Unit
3 19KPR040 WALKER AND HOSE CONNECTOR  KIT
5 3350/13 Plastic sieve Ø69
6 163K Click Handle Ø8
7 3350/8A Shoulder Strap
8 PVC120 PVC  Discharge Pipe
9 92/4GU25 Shoulder Strap  Sheath
10 927R1 Curved aluminium lance 40 cm
11 19KPR021 Cylinder
12 19KPR022 Piston with Handle
13 19KPR023 Half Piston Guide
14 ZZOR137 O-ring piston
15 ZZOR6262 Pumping  O-ring
16 3350/6 V Foot  valve
17 19KPR030 Valve  Assembly
