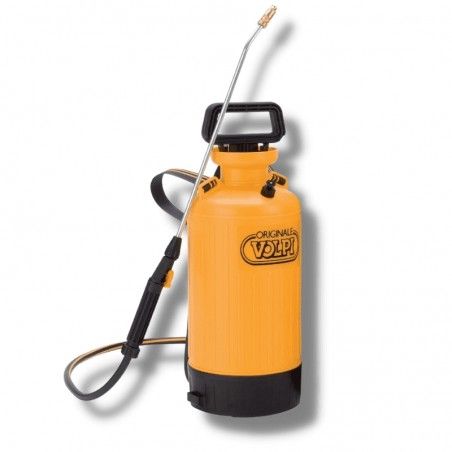

The Garden VOLPI is the pressure pump useful for diffusing aqueous solution products and treating large areas.
All spare parts for this model can be ordered. Consult the exploded view and find the number corresponding to the spare part. Contact us here to order it.
You might also like
The Garden VOLPI shoulder pressure pump is equipped with a 61 cm long aluminum lance at the end of which an adjustable brass sprayer is fixed to ensure homogeneous nebulization.
Available with 3 different tanks:
It can be carried over the shoulder or by hand with the practical handle.
Equipped with flexible hose and lance with adjustable pulverizer, and pressure relief valve regulated at 3 bar.
The pump container is made of plastic, and is suitable for gardening and weeding work, in the professional and hobby fields.
In addition, each Original Volpi product is guaranteed against manufacturing defects as it is 100% checked and tested before each shipment.
We have designed with this pump a KIT to connect the pump to the heart of the palm tree
and perform treatments against the red palm weevil without climbing the ladder iron for agriculture.
1 3350/2B CONNECTING ROD/ PUMPING HANDLE
2 3350/3 GUIDA CAP
3 3350/4 PISTON O-RING HOLDER
4 3350/5 CILINDRO/ CYLINDER
5 3350/6 BOTTOM VALVE
6 3350/7 CERCHIO DI BASE/ CIRCULAR BASE
7 3350/8G SHOULDER STRAP
8 3350/9 POMPANTE COMPLETO / COMPLETE PUMP
9 ZZOR3168 CYLINDER SEAL O-RING
10 3350/13 CRIVELLO/ SIEVE
11 3350/18 VALVOLE CARICO PRESSIONE / PRESSURE DISCHARGE VALVE
12 ZZOR2056 CONNECTING ROD O-RING
13 ZZOR3-020 PISTON SEAL O-RING
14 ZZOR6225 O-RING CAP SEAL O-RING
15 PVC120 DELIVERY HOSE 120 CM/ DELIVERY HOSE CM 120
