PS ULTRA Hunter sprinklers suitable for any installation
PS ULTRA Hunter is compatible with female cartridges, contains a robust and precise two-piece clutch , as well as the piston, which is also very robust and a double filter in the 10cm lift model with built-in head.
The standard PS Ultra models include a pre-installed Pro adjustable head.
They are also available in a version without a head with a bleed plug and without a bottom filter.

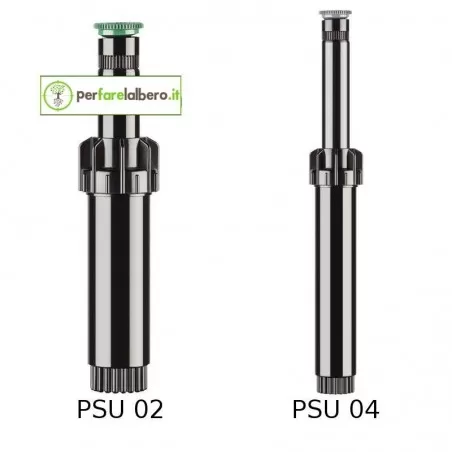

| MODEL | HEIGHT | Range meters |
| PSU 02 10A | 50 | 3 |
| PSU 02 12A | 50 | 3,7 |
| PSU 02 15A | 50 | 4,6 |
| PSU 02 17A | 50 | 5,2 |
| PSU 02 5SS | 50 | 1.5 x 9 |
| PSU 02 LESS | 50 | - |
| PSU 04 10A | 100 | 3 |
| PSU 04 12A | 100 | 3,7 |
| PSU 04 15A | 100 | 4,6 |
| PSU 04 17A | 100 | 5,2 |
| PSU 04 5SS | 100 | 1.5 x 9 |
| PSU 04 LESS | 100 | - |
FEATURES OF Hunter PSU-02 Static Sprinkler:
- Overall Height: 12.7 cm
- Piston height: 5 cm
- Exposed Diameter: 3 cm
- Inlet thread: 1/2"
Specific
- Flow rate: 0.76 to 21.2 l/h
- Radius: 2.1 to 5.7 m
- Recommended operating pressure: 1.4 to 4.8 bar; 140 to 480 kPa
- Precipitation rates: about 43 mm/hour.
